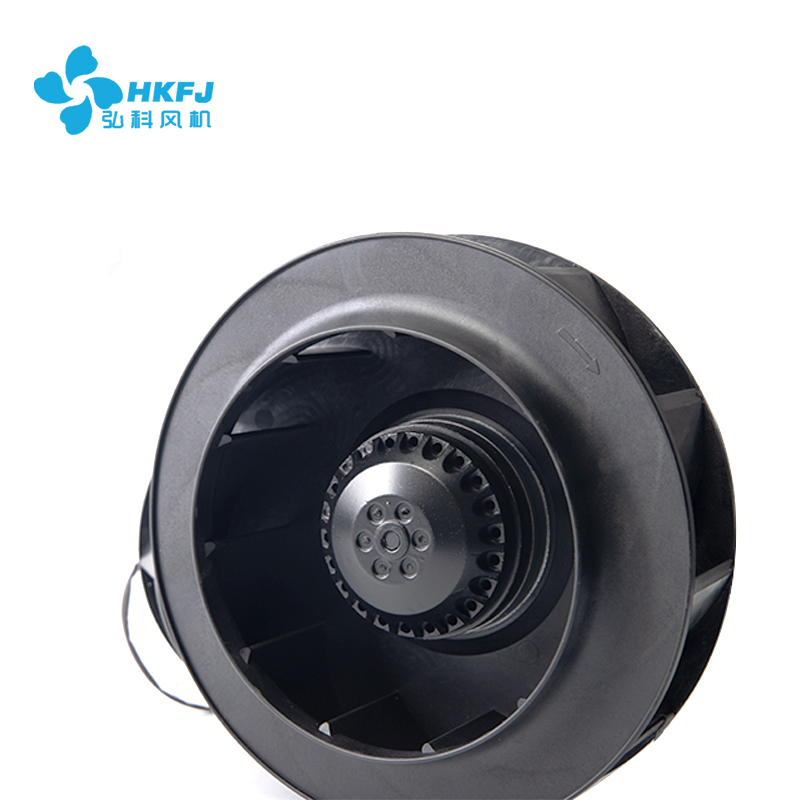

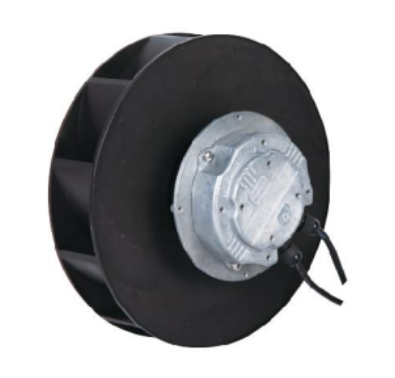

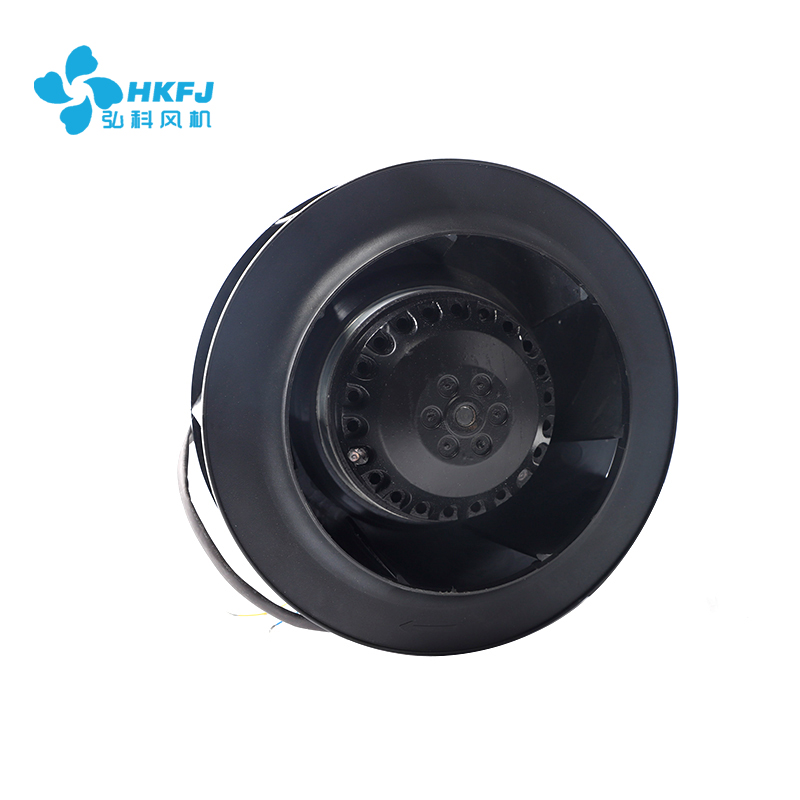

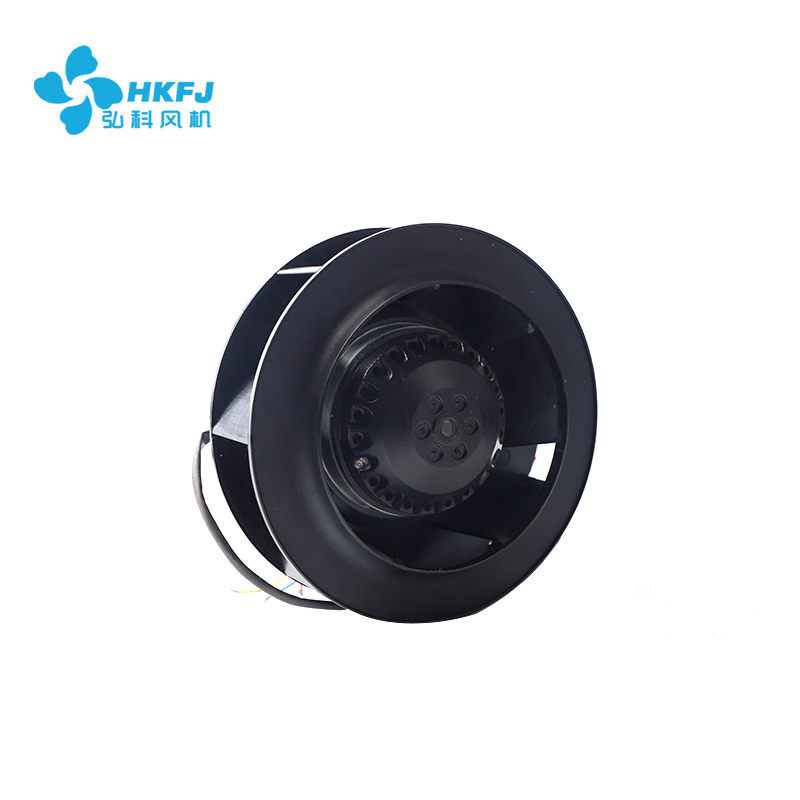

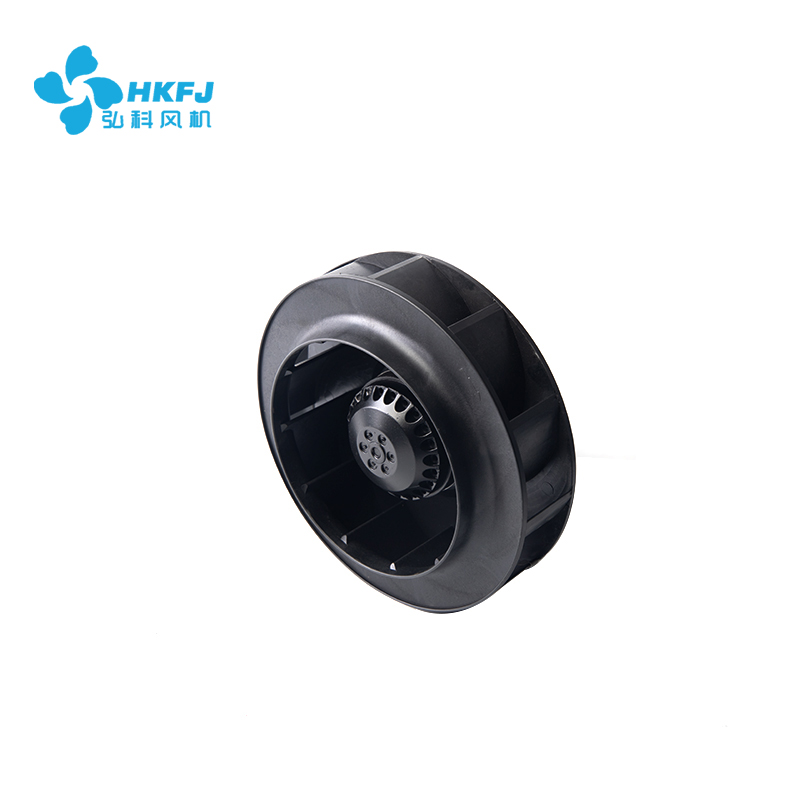

EC 190 Backward Centrifugal Fan
Power：85W
Air volume：
Rotating speed：3096r/min
Please click the inquiry button below to contact us
Description
| Material: | Blade:pp +40% GF; rotor:Coated in black;Electronics enclosure: Die-cast aluminum |
| Direction of rotation: | Counter clockwise ,view from end cover |
| Type of protection: | IP54 |
| Mounting position: | vertical or horizontal |
| Operation Mode: | S1 |
| Bearings: | Maintenance-free ball bearing |
| Technical features: | Control input: 0-10V DC/PWM;
Integrated PID controller; speed signal feedback Single auxiliary output power supply: 10V DC+-10%, max.10mA |
| Protection: | current limitation,stall protection, soft start protection |
| EMC: | According to EN61000-6-3/2, EN61000-3-2/3 |
| Approvals | CCC, CE |
| Amb.Temp: | -25~ +60ºC |
| Insulation class: | F |
| Model | Voltage (V) |
Frequency (Hz) |
Power (W) |
RPM (r/min) |
Current (A) |
Pressure (Pa) |
Temperature (ºC) |
Static pressure efficiency (%) |
Energy efficiency value (N) |
Noise dB(A) |
| PMDWF74L25-190×62 | 1-230±10% | 50/60 | 85 | 3096 | 0.2 | 311 | -40- +60 | 35.85 | 58 | 65 |
